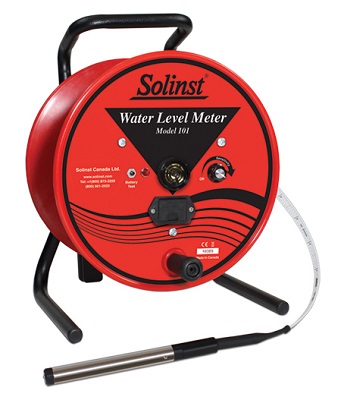

Solinst Model 101 Water Level Indicator – P7 Probe

$616.00$1,361.00

Solinst water level indicators are used for measuring the depth to water in various types of boreholes, wells, standpipes, and tanks. These meters are designed with precision in mind for accuracy within millimeters or fractions of an inch, with the help of features like adjustable sensitivity and a probe engineered for minimal displacement.

(Order lead time may vary depending on manufacturer.)

The Model 101 water level indicator with a P7 probe is designed for a variety of field applications. The no-stretch PVDF tape is molded in the patented Dog-Bone shape to keep the tape from adhering to the side of the well or borehole. The stainless steel P7 probe is engineered for minimal displacement using a sensor at the tip of the instrument to detect water.

Features:

  • Available in lengths up to 5,000 ft
  • Probe diameter: 5/8th of an inch
  • Tape Width: 3/8th
  • Weight: ~4.5 ounces
  • Powered by 9V battery
  • Ergonomically designed frame and grip
  • Tape guard doubles as a method to secure the reel to well casing
  • Highly durable Solinst PVDF laser marked tape with dog-bone design (marked in Millimeters or 1/100th of a foot)
  • Robust electronics with adjustable sensitivity dial
  • Probe submersible up to 1,000 ft.
  • Easy access battery tray
  • Unit designed for easy reparability
  • Operating temperature of reel: -20°C to +50°C
  • Submerged operating temperature (tape/probe): -20°C to +80°C
  • Wetted materials (tape/probe): MDPE, neoprene, Delrin, 316 stainless steel
  • Reel IP Rating: IP64 (dust and splash proof)
  • Tape Lengths: 100 to 1000 ft, 30 – 300 m
  • Options: Carrying case (small and medium padded nylon carrying cases), Power Reels, Replacement Parts

Probe

  • P7 Probe is submersible the full length of the tape, therefore, you can measure total well depth in ideal conditions
  • The sensor at the tip of the probe provides consistent measurements with almost zero displacement
  • The tape seal plug design allows the probe to be quickly and easily replaced, if required

PVDF Laser Marked Tape

  • Uses extremely durable, PVDF flat tape, traceable to NIST and EU measurement standard
  • Each tape conductor contains 13 strands of stainless steel, and 6 strands of copper-coated steel, making the tape non-stretch and high in tensile strength and electrical efficiency
  • Has a thick dog bone design that prevents adherence to wet surfaces, and allows it to hang straight in application
  • Easy to splice
  • 3/8″ tape comes with permanent laser markings every 1/100 ft., in lengths up to 5000 ft.
